Harris Gorilla 200T-13/9 Two-Ram Baler

Harris Gorilla 200T-13/9 Two-Ram Baler

Location:Lorain, OH

Description

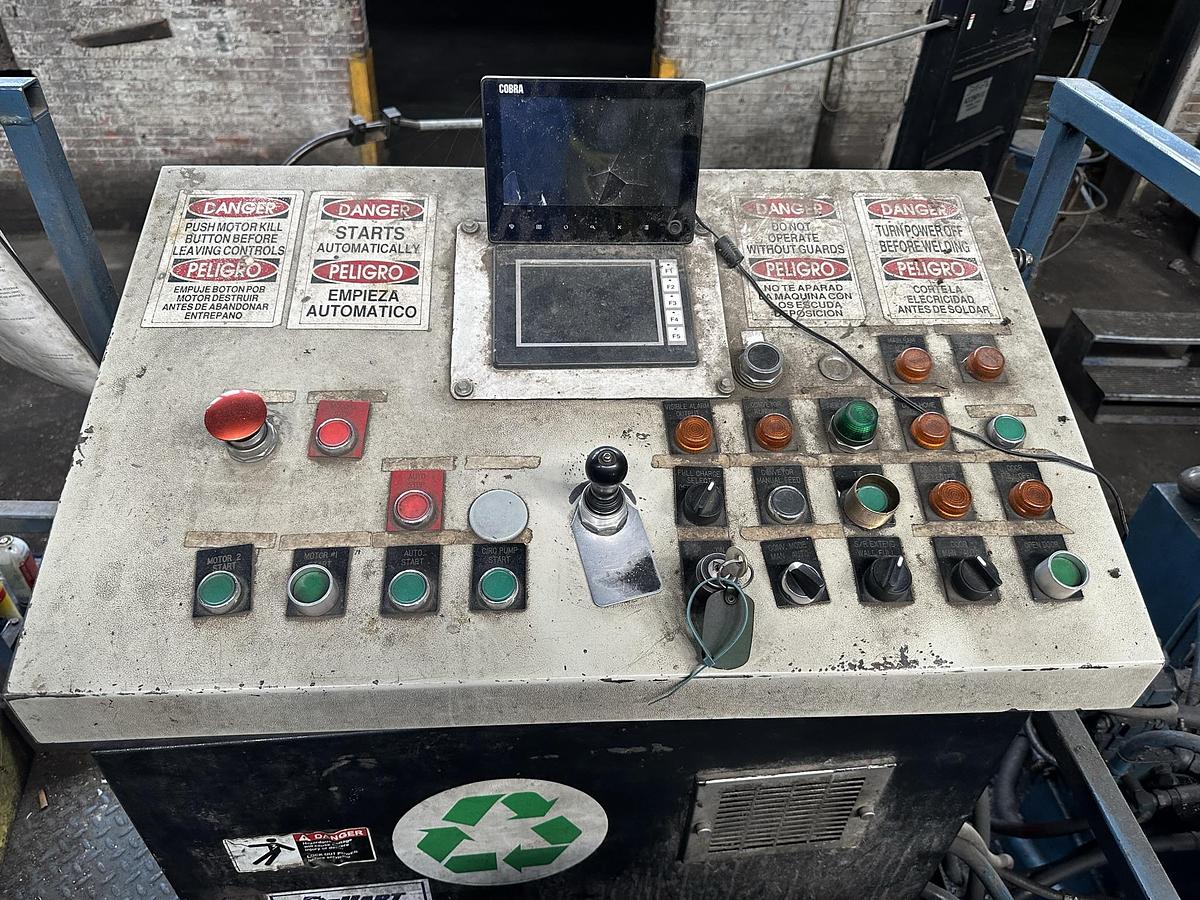

The Harris Gorilla 200T-13/9 Two-Ram Baler is a robust machine designed for versatile and efficient operation in the recycling and waste management sectors. It features a 3500 PSI operating pressure and the Harris SmartKnife™ System, which ensures highly dense bales and optimal throughput for various materials. With a penetration level of 60% into the bale chamber and heavy-duty uni-body frame construction, this refurbished baler provides reliable and enduring performance. This baler boasts substantial compaction power with a total force of 464,000 lbs., driven by dual 100HP motors. The system components are crafted from high-quality abrasion-resistant materials, including replaceable liners for long-lasting durability. The baler's fully automatic operation and comprehensive diagnostic capabilities, accessible via a 10” touch screen display, simplify use and maintenance. The bale dimensions are 45” x 31” x 63”, and it can produce bales weighing up to 6,000 lbs. for non-insulated wire. For enhanced flexibility, standard and optional features include a 480V electrical configuration, soft start motor technology, Harris standard warranty, laser positioning systems, and safety monitoring systems. Additionally, options for customization, such as hopper extensions, elevated operator platforms, and feed conveyors, are available to cater to specific operational requirements. This baler is well-suited for a range of industrial applications, offering efficient waste management solutions.

Specifications

ManufacturerHarris
ModelGorilla 200T-13/9 Two-Ram Baler
ConditionRefurbished
Stock Number00113
Feed Opening86”W x 105”L
Bale Size45” x 31” x 63”
Bale WeightUp to 2,000 lbs. for Fiber & Up to 6,000 lbs. for Non-Insulated Wire
Main Cylinder13" Main Cylinder
Eject Cylinder9" Ejection Cylinder
Bale Separation Door Cylinder6” Bore x 53” Stroke
Total Compaction Force464,000 lbs.
Motor Size(s)Dual 100HP Motors
ElectricalTEFC 480V/3PH/60HZ
Air-to-Oil Heat ExchangersDual

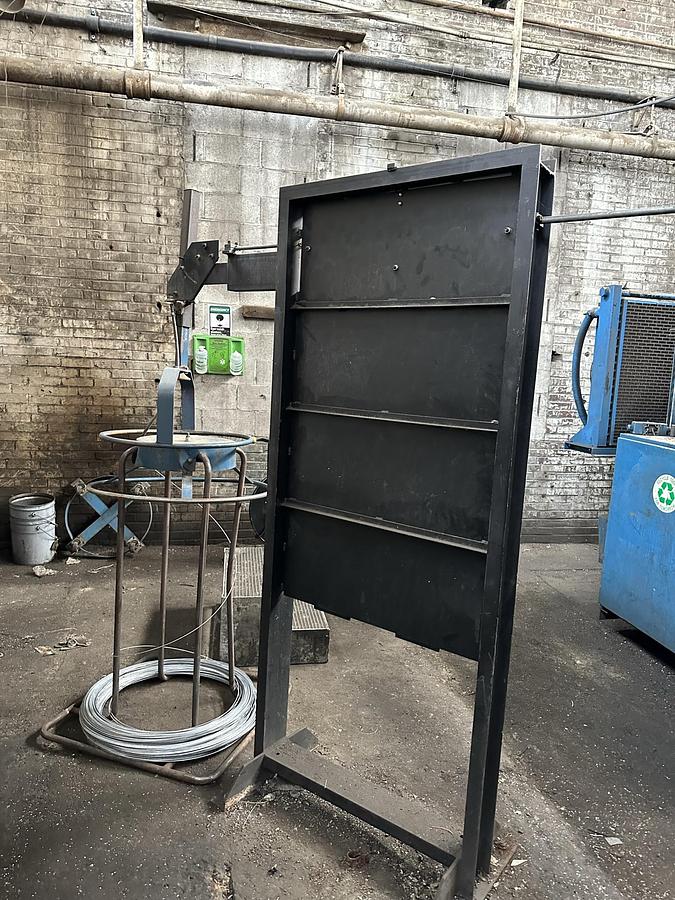

Wire TierAccent 470
Warranty Package120 Days Parts & Labor
