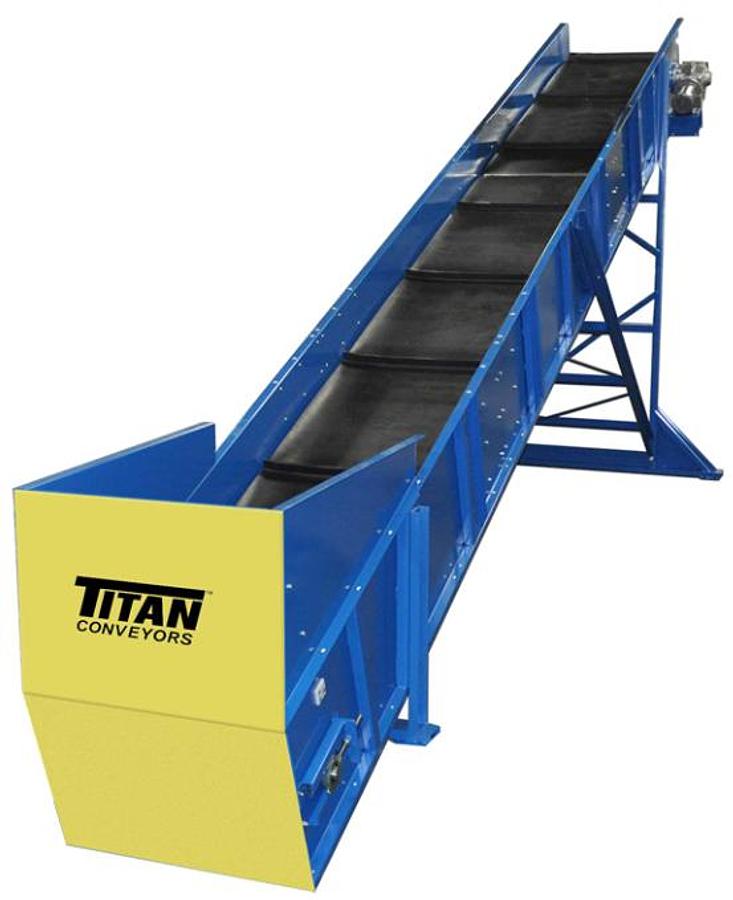

2026 Titan Conveyors Slider-Bed Infeed Conveyor 4822

2026 Titan Conveyors Slider-Bed Infeed Conveyor 4822

Location:New London, WI

Description

The 2026 Titan Conveyor Slider-Bed Infeed Model 308 is specifically designed for efficient recycling, baling, and shredding operations. This new conveyor model offers robust construction to ensure reliable performance in demanding environments. It features a 48-inch wide conveyor belt with a length of 22 feet, incorporating a black PVC belt with 2-inch high cleats spaced at 24-inch centers. The conveyor operates at a speed of 50 feet per minute, achieving optimal throughput. Powered by a 1-1/2 HP motor compatible with 240/480 V three-phase electrical systems, the Slider-Bed Infeed Model 308 is equipped with a NORD 40:1 reducer and an 8-inch diameter head and tail shaft. The frame is constructed from formed #10 gauge steel, while re-greaseable bearings and 12-inch high siderails with full-length skirting offer enhanced durability and containment. An adjustable support system ensures flexibility with a minimum infeed height and 128-inch clear discharge height. The design is backed by a one-year factory warranty covering parts and labor, underscoring its quality and reliability for continuous operation.

Specifications

ManufacturerTitan Conveyors
ModelSlider-Bed Infeed Conveyor 4822
Year2026
ConditionNew
Stock Number00163
Conveyor Belt Width48"
Conveyor Length22'
BeltingBlack PVC #120 W/ 2" High Cleats on 24" Centers
Conveyor Speed60 FPM
Drive LocationSide Mount Drive LH
Motor Size1-1/2HP 240/480 Volt Inverter Duty 1800RPM 145TC
ElectricalThree Phase 240 / 480 volts
Reducer40:1, NORD REDUCER
Head Shaft8" Diameter x 48" FL, CFRL, Drive
Tail Shaft4" Diameter x 48" FL, CFRL, Tail
Frame ThicknessFormed #12 Gauge
BearingsRegreaseable
Skirting12" High Siderails, Full Length - Both Sides - 1" From Each Edge For UHMW Overlapping the Belt
Conveyor SupportsThree Pair of Adjustable Supports for Minimum at the Infeed and 132" Clear at the Discharge
WarrantyFactory One (1) Year Parts & Labor
